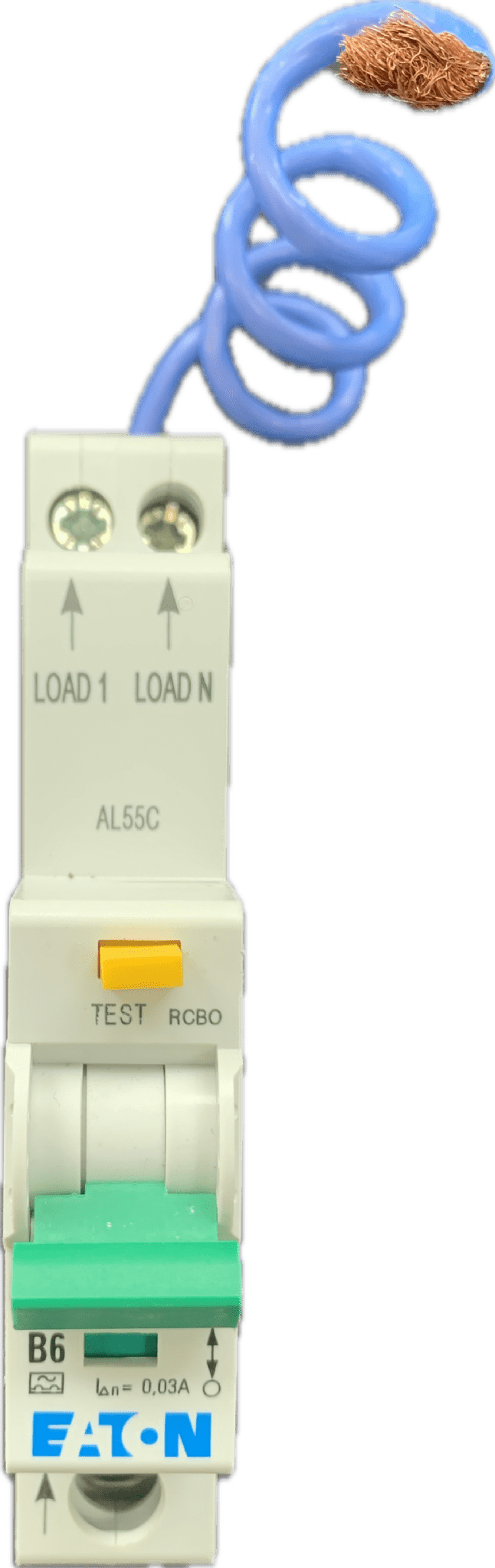

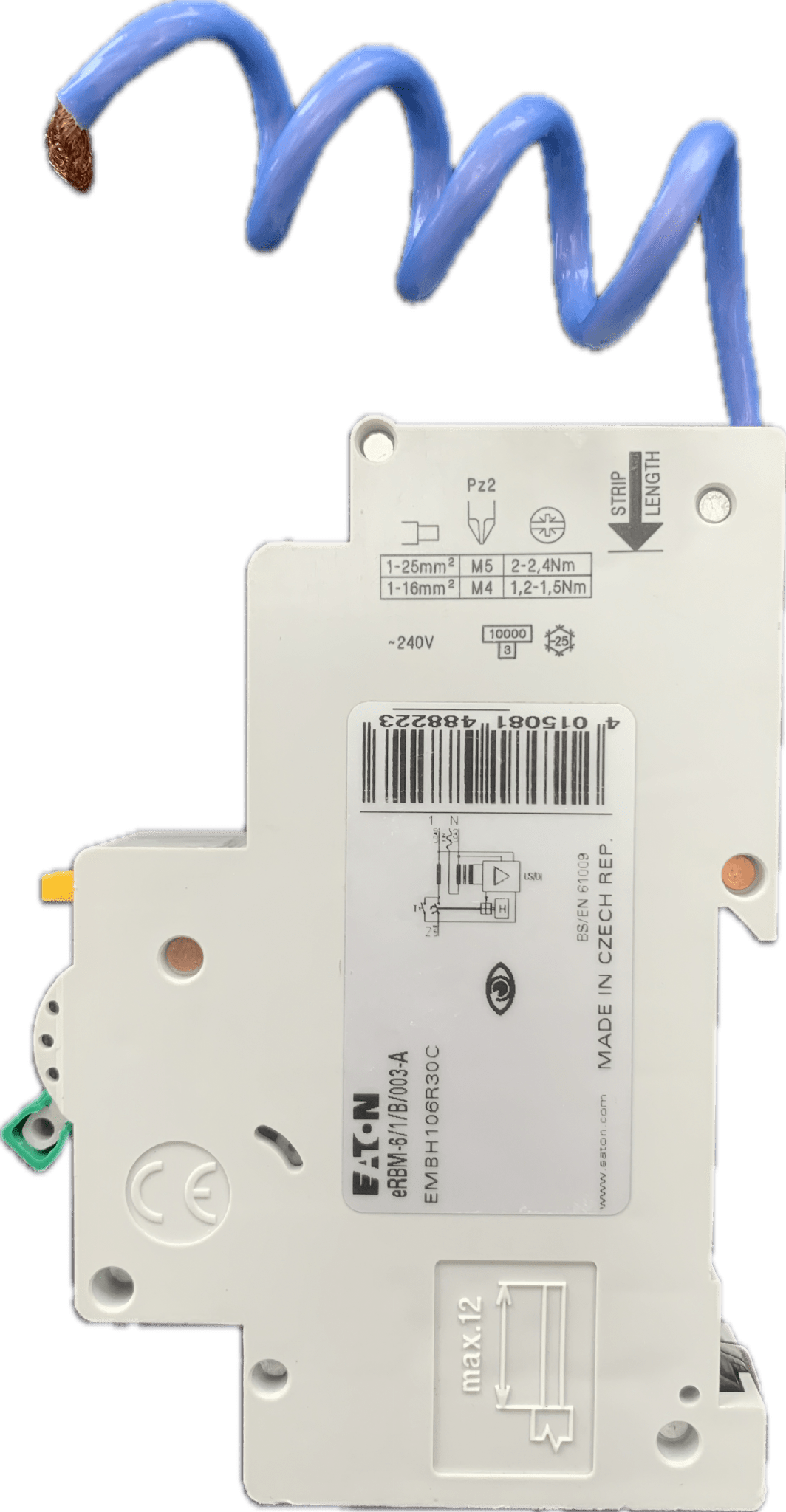

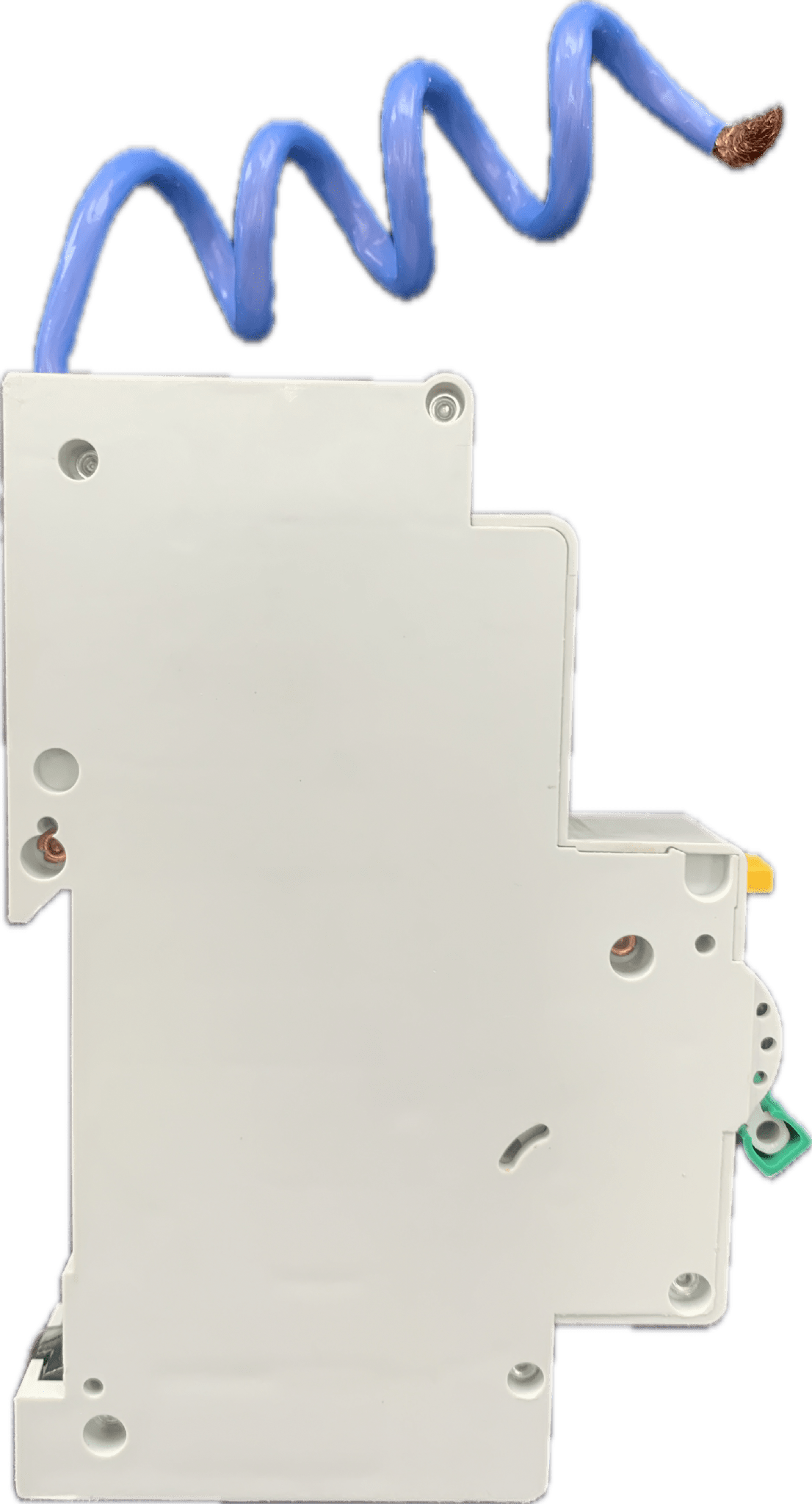

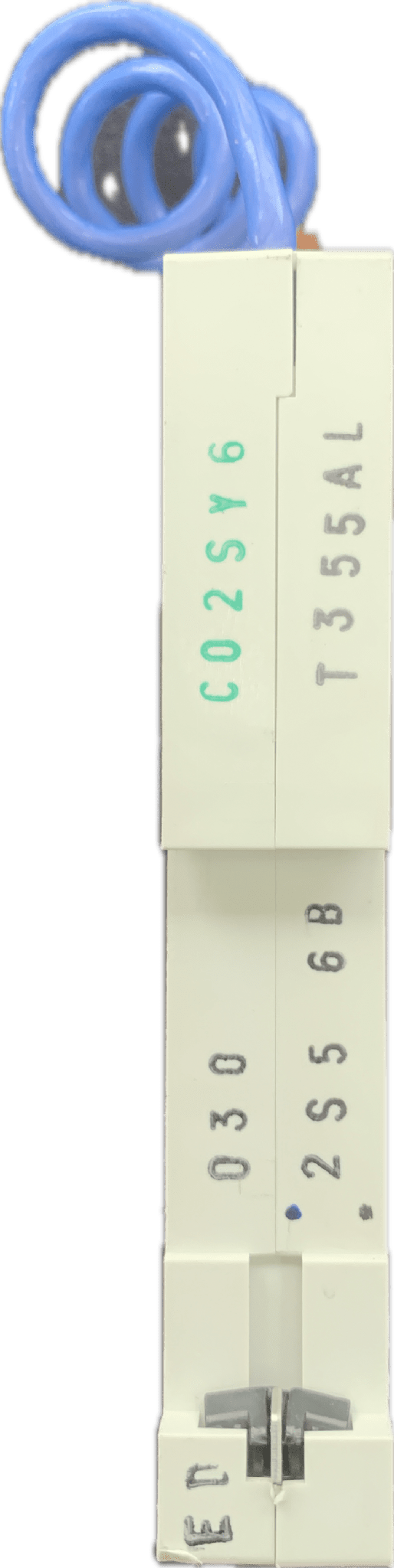

Eaton B6A 30mA RCBO Type A eRBM-6/1/B/003-A

Eaton B6A 30mA RCBO Type A

Breaking Capacity 10,000A

RCD Rating 30mA

Overload Current Rating 6A

Overload Current Curve Type B

RCD Type A

BS-EN61009

Manufacturer: EATON
Part Number: eRBM-6/1/B/003-A
Rating: 6A 30mA
Type: A
This is a salvaged item that is fully functional and was tested in accordance with BS7671 prior to removal with the following test results.

Test Button = Functional = Pass

15ma Tests = No Tripping = Pass

30ma Test = 28ms @ 0d = Pass

30ma Test = 18ms @ 180d = Pass

150ma Test = 9ms @ 0d = Pass

150ma Test = 9ms @ 180d = Pass

This section of our website is designed to offer items of electrical equipment for sale which have been reclaimed, i.e. Items that were in service (working) and have been carefully removed from an existing electrical installation by one of our electrical engineers. Many of these items offered in this section are no longer manufactured but will no doubt be of use to someone altering an existing installation that already contains obsolete equipment. Reclaimed items are offered for sale without any warranty or guarantee, however on the rare occasion where the item does not function when you receive it then we will refund it accordingly.
